ZETA480
Hzhongtai
| Availability: | |
|---|---|
|
| |
| Model | ZETA480 |
| Supply Voltage | 380V / 50Hz |
| Current Draw | 11 Amps (30℃/80%RH) |
| Power | 4700 Watts (AHAM) |
| Airflow | 2800 m³/h |
| Water Removal (@ 30℃/80%RH) | 480 Liters/day |
| Water Removal (@ 26.7℃/60%RH) | 290 Liters/day |
| Water Removal (@ 40℃/20%RH) | / |
| Water Removal (@ 32℃/90%RH) | / |
| Functioning Temperature Range | 5℃ - 38℃ |
| Functioning Humidity Range | 10%RH - 90%RH |
| Humidity Setting Range | / |
| Noise Level | 75 dB |
| Refrigerant Type / Amount | R410A / 6.0kg |
| Display Board | LCD Panel |
| External Controller | / |
| Filtration | Nylon |
| Housing | Sheet Metal |
| Drain Port Connection | 3/4″ Threaded NPT |
| Timing | / |
| APP | Yes |
| WIFI | Yes |
| Timer | Yes |
| Net Weight | 201 kg |
| Gross Weight | 226 kg |
| Unit Dimensions | 1277*1040*740 mm |
| Package Dimensions | 1340*1140*890 mm |
| Loading Quantity (20'/40'/40') | 16/32/32 |
| Warranty | 3-Year |
| OEM/ODM | Yes |
Selecting the right commercial dehumidifier requires balancing sensible heat, latent moisture loads, and continuous airflow dynamics. Engineered with an industrial-grade airflow of 2,800 m³/h and a moisture extraction capacity of 480 L/day (at 30°C/80% RH) and 290 L/day (AHAM standard at 26.7°C/60% RH), the ZETA480 is optimized for moisture-intensive B2B environments.
During peak vegetative and flowering stages, rapid plant transpiration can raise relative humidity above 85% within hours, causing severe risks of powdery mildew, Botrytis (gray mold), and nutrient uptake lockouts.
Airflow Circulation: The high-velocity 2,800 m³/h blower eliminates stagnant air pockets and microclimates under dense canopies.
VPD Stabilization: Integrates with automated environmental controllers to maintain strict Vapor Pressure Deficit (VPD) targets without causing thermal spikes.
In processing plants where hygroscopic raw materials (such as tea leaves, gelatin, or powdered extracts) require constant moisture levels:
Operating Envelope: Consistent dew-point depression across a 5°C to 38°C functioning range.
Hygiene Protection: Prevents structural condensation, bacterial proliferation on cold surfaces, and packaging integrity failure.
For quick engineering sizing in sealed indoor grow facilities:
Required Capacity (L/Day) ≈ Daily Total Irrigation (L) * 0.95
In a commercial cultivation facility feeding 500 liters of water daily, a single ZETA480 unit efficiently captures the vast majority of transpired moisture in 24-hour continuous duty.
Industrial environments demand uninterrupted operation under harsh conditions. The ZETA480 is constructed to eliminate downtime through robust mechanical design and intelligent remote monitoring.
Weighing 201 kg net with a powder-coated heavy sheet-metal chassis, the unit withstands agricultural spray mist, physical impacts in high-traffic warehouses, and corrosive high-humidity environments. The internal copper-tube aluminum-fin heat exchanger is optimized for longevity with 6.0 kg of stable R410A refrigerant charge.

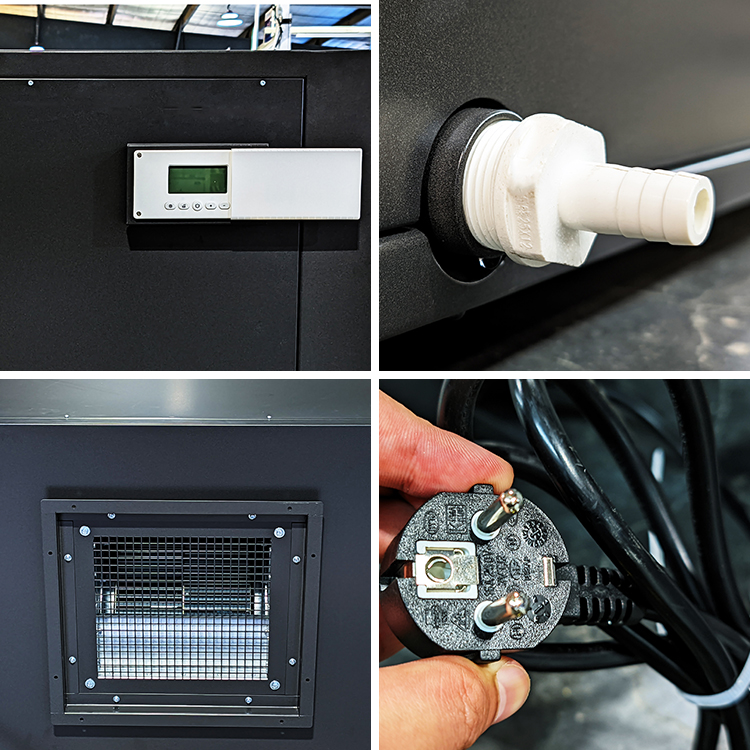

Standard Industrial Fitting: The 3/4” threaded NPT drain port connects securely to standard PVC piping without leak risks.
Dual Monitoring (Local & Cloud): Operators can monitor ambient humidity in real time via the onboard LCD control panel or adjust setpoints (10% to 90% RH) remotely using the companion iOS/Android Wi-Fi APP.
Automated Cycle Recovery: Automatically resumes target humidity settings following unexpected facility power interruptions.
Electrical Supply: Requires a dedicated 380V / 50Hz 3-phase industrial power supply (11 Amps running current).
Air Filtration: Equipped with high-flow, washable nylon mesh filters. Clean filters every 14–30 days, depending on ambient dust levels, to preserve maximum airflow across the evaporator coil.
Warranty & Support: Backed by a standard 3-year commercial warranty with full OEM/ODM technical documentation and replacement component availability.
