PRO230
Hzhongtai
| Availability: | |
|---|---|
|
| |
| Model | PRO230 |
| Supply Voltage | 230V / 60HZ |
| Current Draw | 6.7 Amps |
| Power | 1530 Watts |
| Airflow | 559 CFM |
| Water Removal (@ 30℃/80%RH) | 350 PPD |
| Water Removal (@ 26.7℃/60%RH) | 230 PPD |
| Water Removal (@ 40℃/20%RH) | / |
| Water Removal (@ 32℃/90%RH) | 500 PPD |
| Functioning Temperature Range | 5℃ - 35℃ |
| Functioning Humidity Range | 20%RH - 85%RH |
| Humidity Setting Range | 30%RH - 90%RH |
| Noise Level | 75 dB |
| Refrigerant Type / Amount | R410A / 1.5kg |
| Display Board | LCD Panel |
| External Controller | Support Modbus |
| Filtration | MERV11 |
| Housing | Sheet Metal |
| Drain Port Connection | 3/4″ Threaded NPT |
| Timing | / |
| APP | Yes |
| WIFI | Yes |
| Timer | Yes |
| Net Weight | 64kg |
| Gross Weight | / |
| Unit Dimensions | 815*520*510 mm |
| Package Dimensions | 945*630*675 mm |
| Loading Quantity (20'/40'/40') | 63/126/126 |
| Warranty | 3-Year |
| OEM/ODM | Yes |

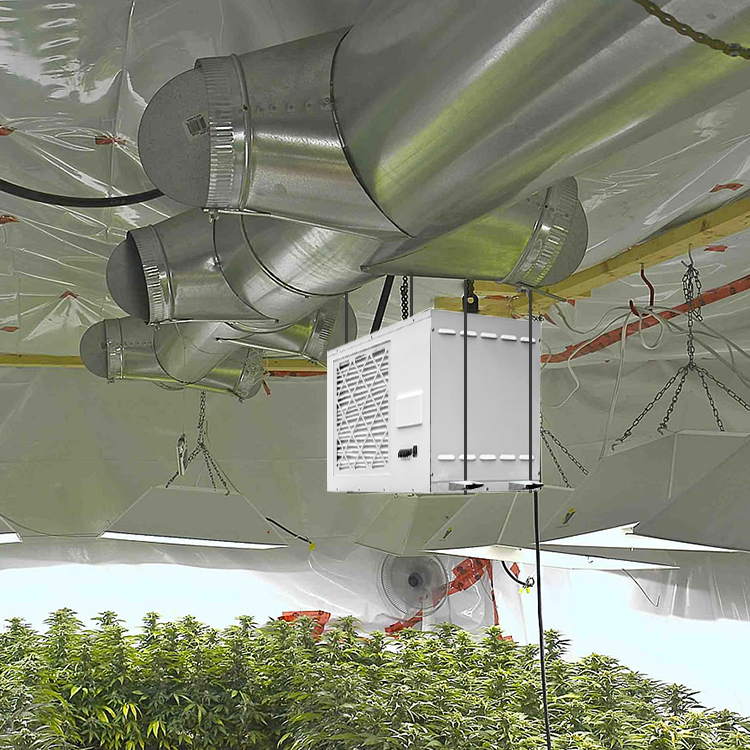

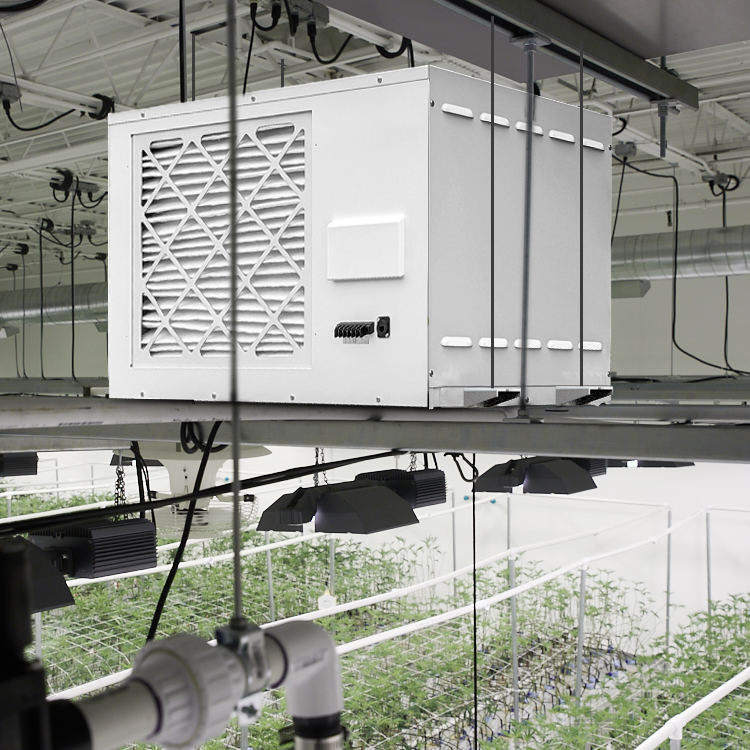

Designed with a compact footprint of 815 × 520 × 510 mm and a sturdy 64 kg sheet metal chassis, the PRO230 offers exceptional installation flexibility for space-constrained facilities. It supports overhead ceiling suspension, heavy-duty wall mounting, or direct floor placement inside grow tents, swimming pool utility rooms, and cleanrooms. By keeping the unit elevated, operators can reclaim 100% of valuable floor space and canopy footprint while optimizing airflow circulation across the room.
The PRO230 bridges industrial reliability with modern smart facility management. Equipped with an intuitive digital LCD control panel, it enables precise target humidity configuration between 30% and 90% RH alongside programmable timer cycles. For automated operations, the unit natively supports Modbus RTU external controller protocols for seamless integration into central Building Management Systems (BMS) and climate computers. Additionally, built-in Wi-Fi and mobile app connectivity allow facility managers to monitor real-time humidity levels and modify settings remotely from anywhere.

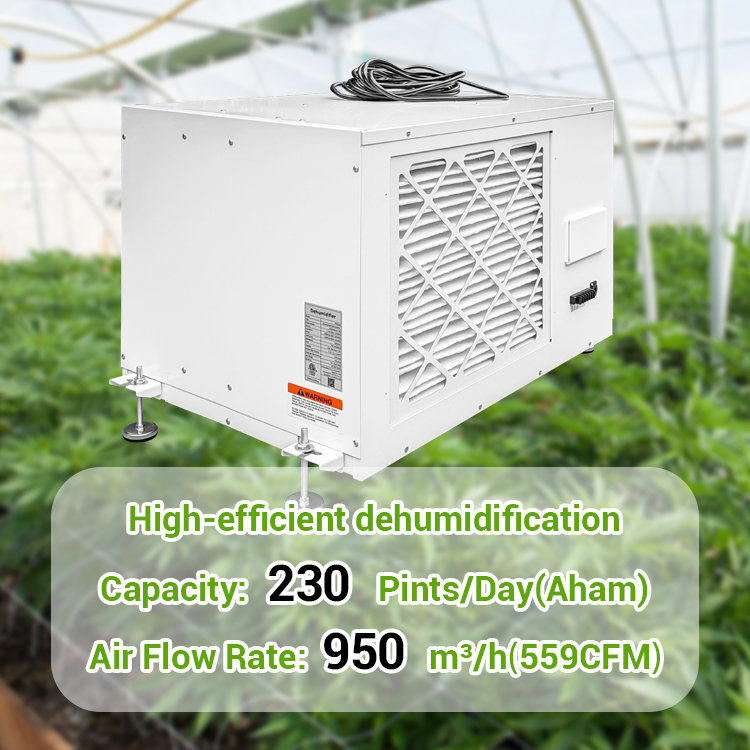

Powered by an energy-optimized 1,530W refrigeration system (6.7 Amps @ 230V/60Hz) and eco-friendly R410A refrigerant, the PRO230 delivers high-volume water extraction across diverse thermal conditions. Delivering 559 CFM airflow, it achieves:
- 230 PPD (Pints Per Day) under standard AHAM conditions (26.7°C / 60% RH);
- 350 PPD in warm and humid commercial environments (30°C / 80% RH);
- Up to 500 PPD maximum capacity during extreme saturation peaks (32°C / 90% RH).
Operating across a wide range of 5°C to 35°C (41°F to 95°F), it ensures consistent dew point control and prevents mold proliferation on sensitive crops and pharmaceutical inventory.
Engineered for continuous 24/7 commercial duty, the PRO230 eliminates the downtime of manual bucket emptying. It features a standardized 3/4″ Threaded NPT gravity drain connection that easily attaches to standard plumbing hoses or facility wastewater pipes for direct, worry-free condensation discharge. Coupled with an integrated MERV 11 filtration system that captures airborne dust and contaminants before reaching internal coils, the unit guarantees long-term durability and is backed by a 3-year manufacturer's warranty.
Many pharmaceutical products are sensitive to moisture and humidity. Controlling humidity levels is essential to ensure the stability and quality of medications, preventing degradation, clumping, or other undesirable changes.
Regulatory authorities, such as the FDA (Food and Drug Administration), often require pharmaceutical manufacturers to adhere to specific environmental conditions. Industrial dehumidifiers help pharmaceutical facilities comply with these standards, ensuring the safety and efficacy of products.
High humidity can create conditions conducive to microbial growth, including bacteria and moulds. Using a PRO230 pharmaceutical dehumidifier can help prevent contamination, ensuring that pharmaceutical products remain sterile and meet regulatory requirements.
Hzhongtai is an original equipment manufacturer that sells dehumidifiers suitable for various applications, including commercial, industrial, and whole-house use. We can provide finished machines or customised services (applicable to wholesalers and distributors). I am looking forward to working with you. Please get in touch with us as soon as possible.
