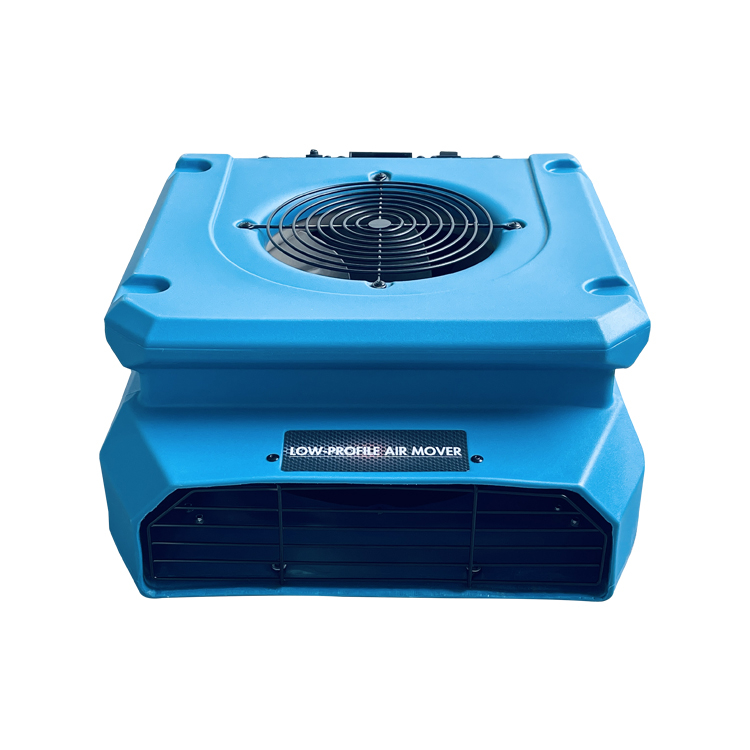

| No: | PA-LO-U1000 |
| Power Input: | 115V/60HZ |
| Power: | 1/4hp |
| Current Draw: | 1.8 Amps |
| RPM: | 1500 rpm |
| Air Volume: | 1000 CFM |
| Max Air Speed: | 16m/s |
| Distance: | 6.5m / 20’ |
| Unit Size: | 550*420*215 mm |
| Box Size: | 575*450*245 mm |
| N.W.: | 10 kg / 8.6 lbs |
| Loading QTY: | 20gp 480pcs 40gp 900pcs 40hq 1100pcs |
Centrifugal Impeller:
The central component of a centrifugal air mover is the centrifugal impeller, a rotating disk with blades or vanes that accelerates the air radially outward.
Housing or Scroll:
Centrifugal fans are housed in a scroll or housing that guides the air from the impeller's center to the outlet. The shape of the scroll is designed to convert the kinetic energy of the rotating impeller into pressure energy.
Directional Airflow:
Centrifugal air movers are capable of providing directional airflow, making them suitable for applications where the air needs to be directed to specific areas.
Pressure Generation:
These fans are effective at generating static pressure, making them well-suited for applications that require air to be pushed through ductwork or other systems with resistance.
