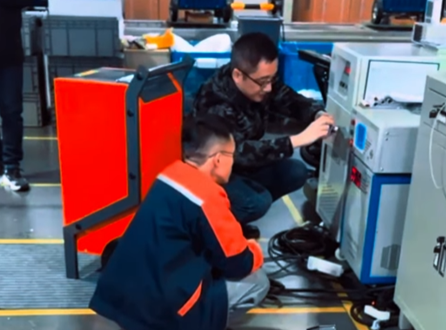

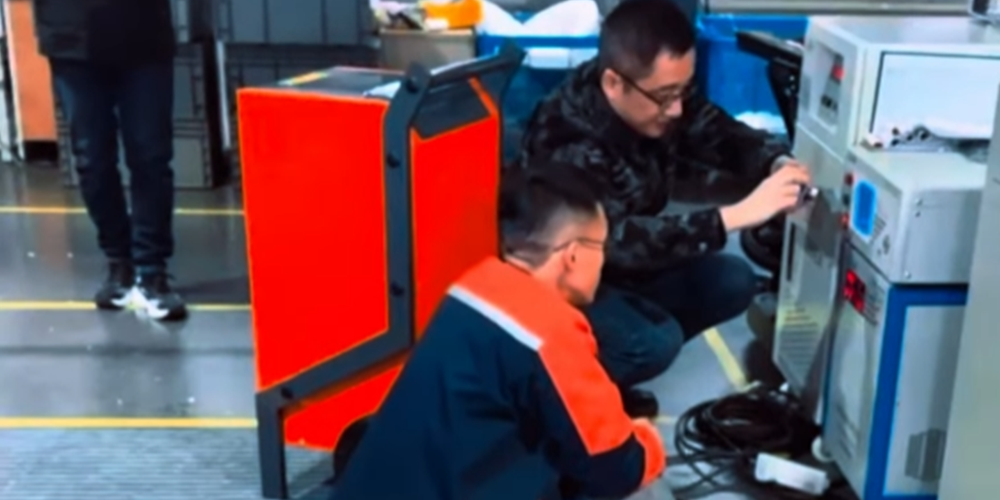

Inspecting inrush current in a dehumidifier involves measuring and analyzing the initial surge of electrical current that occurs when the unit is first powered on. This is important to ensure the dehumidifier is operating correctly and that the inrush current doesn't exceed the limits that could damage the unit or trip circuit breakers. Here's how to conduct an inrush current inspection for a dehumidifier:
Clamp Meter with Inrush Current Function: This is the most common tool for measuring inrush current. It's designed to measure high peak currents at startup.
Multimeter: For basic voltage and current checks.
Oscilloscope (optional): For a more detailed waveform analysis of the current surge.
Safety Gear: Always ensure you're using proper safety equipment when working with electrical systems to avoid injury.
Look at the manual or datasheet of the commercial portable dehumidifier to find information on typical inrush current values, such as starting current and operating current. This will help you understand the expected range of inrush current for your model.
For most dehumidifiers, inrush current can be 5 to 10 times higher than the rated running current during startup.
Clamp the Amp Meter: Position the clamp meter around one of the power cables feeding the dehumidifier, making sure the meter is capable of recording peak inrush current. Ensure the meter is set to capture peak currents (many advanced clamp meters have a special "inrush" mode).
If you're using an oscilloscope, you can attach a current probe to get a detailed visual representation of the current waveform. This is especially useful for diagnosing any irregularities during the startup phase.
Turn on the electrical dehumidifier and observe the inrush current. Pay close attention to the peak value recorded by the meter. If you're using an oscilloscope, capture the waveform during startup.
Record the maximum value of the inrush current and the duration of the spike.
Compare the inrush current to the specifications provided in the dehumidifier's datasheet. If the inrush current exceeds the manufacturer's recommendations or is much higher than expected, this could indicate a potential issue like:
A faulty capacitor or motor winding.
A power supply issue, such as a high resistance or faulty connection.
Overloading or damage to internal components.
Check if the inrush current causes any issues like:
Tripping circuit breakers.
Voltage sags in the electrical system.
Excessive noise or abnormal operation of the dehumidifier.
Ensure that circuit breakers or fuses are sized appropriately to handle the inrush current without nuisance tripping. Some dehumidifiers are equipped with soft-start mechanisms or inrush current limiters, which help reduce the initial surge.
If you observe repeated issues with tripping or high inrush currents, consider using a soft starter or an inrush current limiter.
If the dehumidifier's inrush current seems excessive or if it's causing operational issues (e.g., breaker trips, electrical system strain), you may need to:
Inspect the compressor: The compressor in a dehumidifier is typically the component that causes the highest inrush current. Check if it's running correctly and there are no blockages or mechanical issues.
Test the capacitor: If the unit has a start capacitor for the compressor, check its health as a bad capacitor can cause abnormal current spikes.
Assess the motor or fan: Motors can also contribute to high inrush currents, especially if they are faulty or have excessive resistance.
Age of Unit: Older dehumidifiers may show increased inrush currents due to wear on components like the compressor or motor.
Ambient Temperature: Extreme cold or hot temperatures can affect how components behave during startup, potentially increasing inrush current.
Environmental Factors: Check whether other electrical devices in the building are contributing to voltage sags or power fluctuations when the dehumidifier is turned on.
The inrush current should be within the expected range as per the manufacturer's specifications.
There should be no excessive spikes or issues with the power supply such as frequent breaker trips.
Ensure that the inrush current does not cause damage to internal components or affect overall performance.
By performing an inrush current inspection, you can ensure that the dehumidifier is functioning optimally and that there are no underlying electrical issues that could lead to equipment failure or damage.
